Description
ProData - Wireless Standard Weather Station with Solar Sensor - Turf Package 2 - Remote Data
Turf 2 Package Overview
Cellular (SIM pre-installed) self-powered gateway linking to the wireless weather station and optional standalone sensor nodes (which can support up to 4 additional sensors). Multiple nodes can also be added to provide full sensor coverage to a golf course or sports arena / large site location.
Turf 2 Package includes:

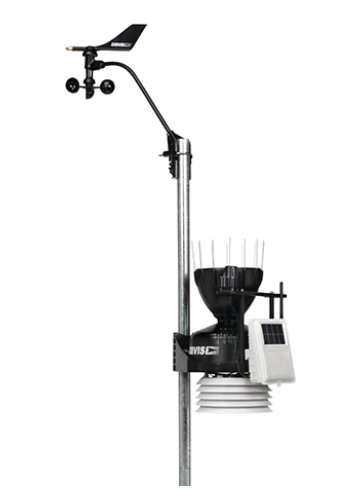

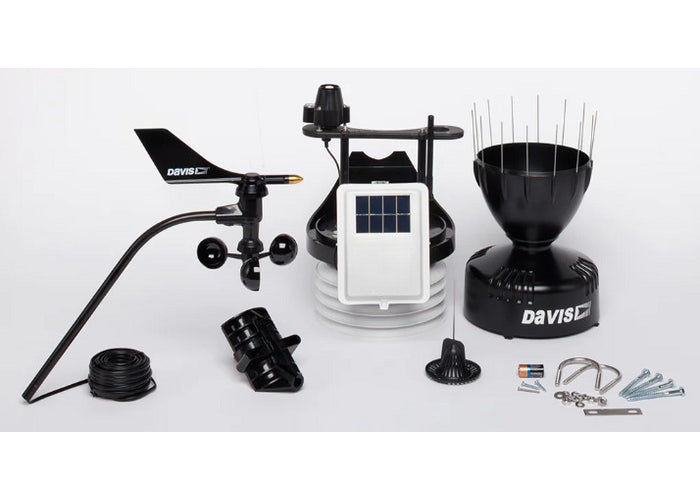

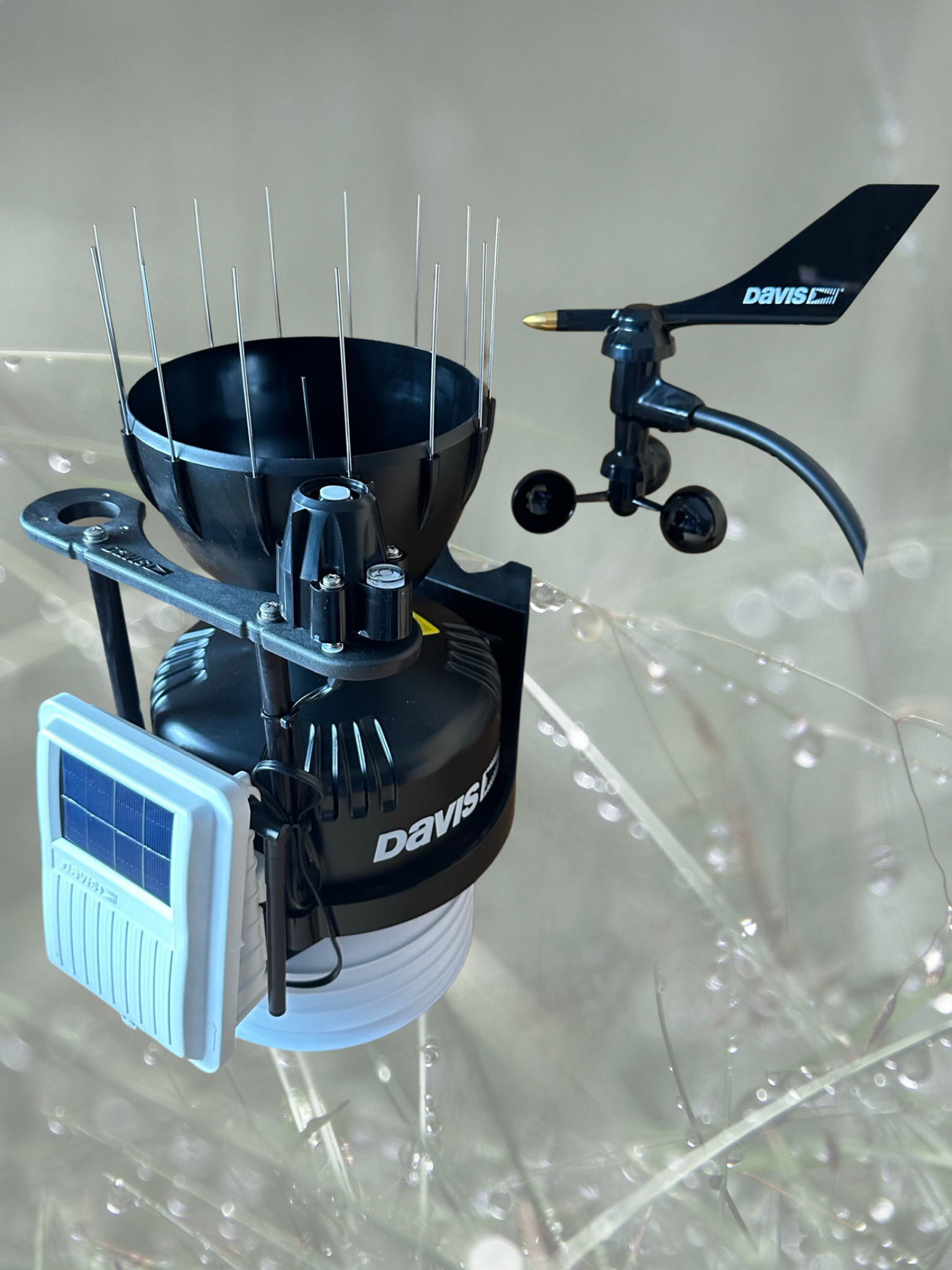

Wireless STD Weather Station (features):
- Anemometer (Wind Speed & Direction)
- 0.2mm per tip rain gauge
- Temperature & Humidity Sensor
- Solar Radiation Sensor (W/M2) and E.T Evapotranspiration

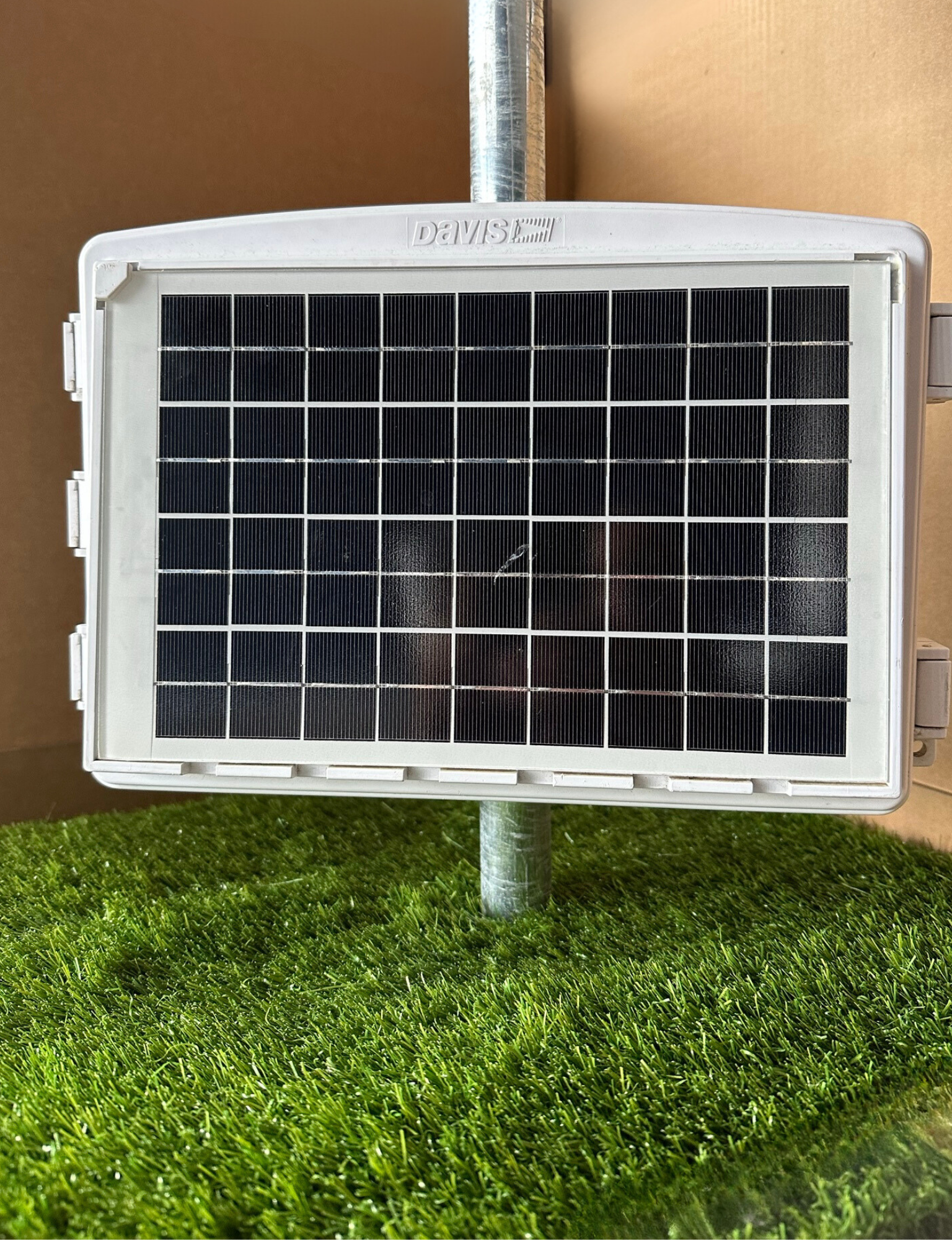

LTE Cellular Gateway – 1
15 Min Gateway Plan (Updates to the Cloud and Mobile APPs)
Annual Gateway Subscription - 1 year.
Additional options for the Turf 2 Package
PDR1 - Dedicated Agronomic reporting software and data reporting package.
- Climatic Statistics (Daily / Monthly)
- Agronomic Reporting
- GDD (Growing Degree Days) 6deg base & 0deg base
- GP (Grow Potential)
- S-K Probability (Dollar Spot)
- SMS (Soil Moisture Surplus) SMD (Soil Moisture Deficit)
- T max, T min, T mean
- RH mean
- Total Rain, Rain Max
- Total ET
- Self-powered Node 300mtr line of sight (Can be extended up-to 3km using Long Range Aerial (enquire for details) to the LTE Gateway – can support 4 sensors.
- Davis Leaf Moisture Sensor accurately reflects leaf moisture / dew levels on the grass plant leaf. A key component in disease forecasting. The Leaf Moisture Sensor gives a reading from 0 – 15 where 0 = dry and 15 = saturated.
- Photosynthetic Active Radiation & DLI (Daylight Light Interval) Sensor.
Soil Moisture / Temperature / EC Sensor - Single Depth 5M Cable
- Single Depth Combined Soil Moisture, Soil Temperature and Salinity Sensor
Soil Moisture / Temperature / EC Sensor - Multi Depth 5M Cable / Profile 30cm
- 30 or 60cm Multi-Depth Soil Moisture, Soil Temperature and Salinity Sensor – every 10cms through the Profile.
7716a - Mounting Tripod with Ground Spikes
We also offer bespoke on-site installation. Please contact the sales office on 01902 440250 if you would like more information.
What data can your weather generate?
E.T (Evapotranspiration) & Rainfall Data
- Soil Moisture Status & Plant Stress
- (Irrigation Requirement -Soil Moisture Deficit / Surplus)
Min & Max Air Temperature
- Grass & Insect Growth Model
- (Daily Growth Degree Days – Daly Growth Potential)
Leaf Moisture Status (If Sensor Fitted)
- Leaf Moisture Status
- (Dew Intensity for Spraying, Removal, Disease Pressure)
Relative Humidity and Dewpoint
- Disease Activity Data
- (Smith Kerns Dollar Spot Model – Real Time Disease Pressure Indicator)
Rainfall Data – mm Per Hour & Time of Max Rainfall
- Rainfall Data
- (Flooding Events, Bunker Wash Outs on Golf Courses, etc.)
Wind Data, Maximum Gust & Time of Max Gust
- Spray Windows
- (Spray Windows, Tree Fall Incidents, Health & Safety)
A key consideration is the location of the Weather Station (and any associated sensors) it is strongly recommended not to locate on a building or roofline. Ideally situated in an open and flat location to replicate the conditions and areas of interest.
For further information regarding the ProData - Wireless Standard Weather Station with Solar Sensor - Turf Package 2 - Remote Data, please contact our technical sales team on 01902 440250.
