Description
| Product Overview | |
|---|---|
| Common Use | Herbicides & Fertilisers |
| Applicator | Knapsack/Boom Mounted |
| Technology | Deflection |
| Spray Angle | 53 - 120° |
| Pattern | Flood |
| Pressure Range | 1 - 3 Bar |
Anvil Nozzles

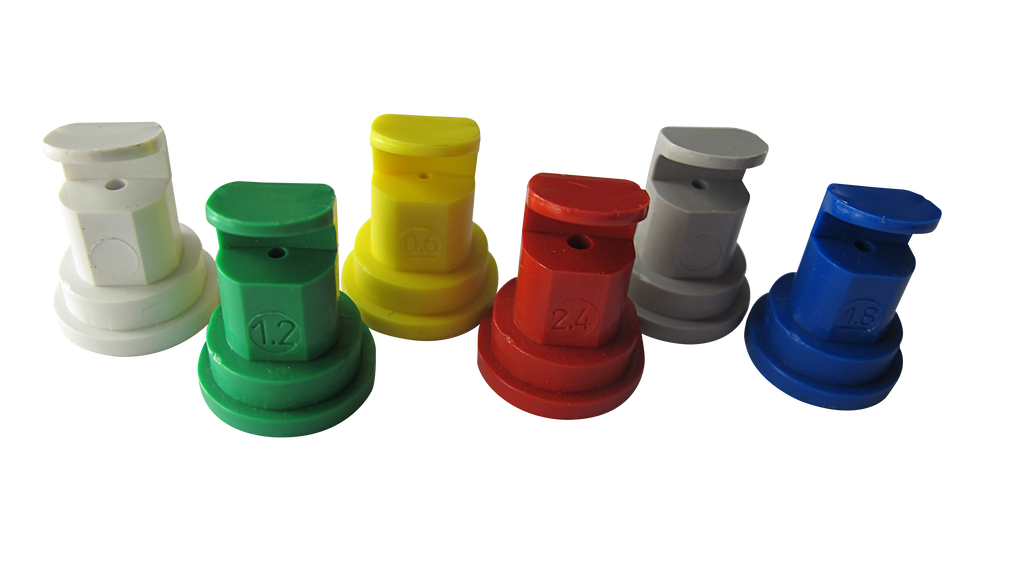

Anvil nozzles, also known as deflector/deflector tip/floodjet/polijet nozzles, produce a wide-angle flat spray pattern with medium-coarse droplets which minimises the risk of spray drift. Anvil nozzles are suitable for broadcast spraying as well as spot spraying with a knapsack.
Polijet Anvil nozzles (sizes 0.6 - 2.4) are well suited to knapsack applications of fertilisers and herbicides. The nozzles give a coarse, even spray at very low pressures. Their medium-coarse droplet size reduces the likelihood of drift whilst the circular orifice reduces the likelihood of blockages.
Deflectip Anvil nozzles (sizes 3.0 - 4.0) are also suitable for boom mounted spraying where a wide angle or a low spray height is required.
Anvil Nozzle Details
| Nozzle Image | Nozzle Size | Use | Application Equipment | Spray Angle | Pressure (Bar) | Droplet Size | Flow Rate (L/m) | Application Rate (L/ha) |
|---|---|---|---|---|---|---|---|---|
 |

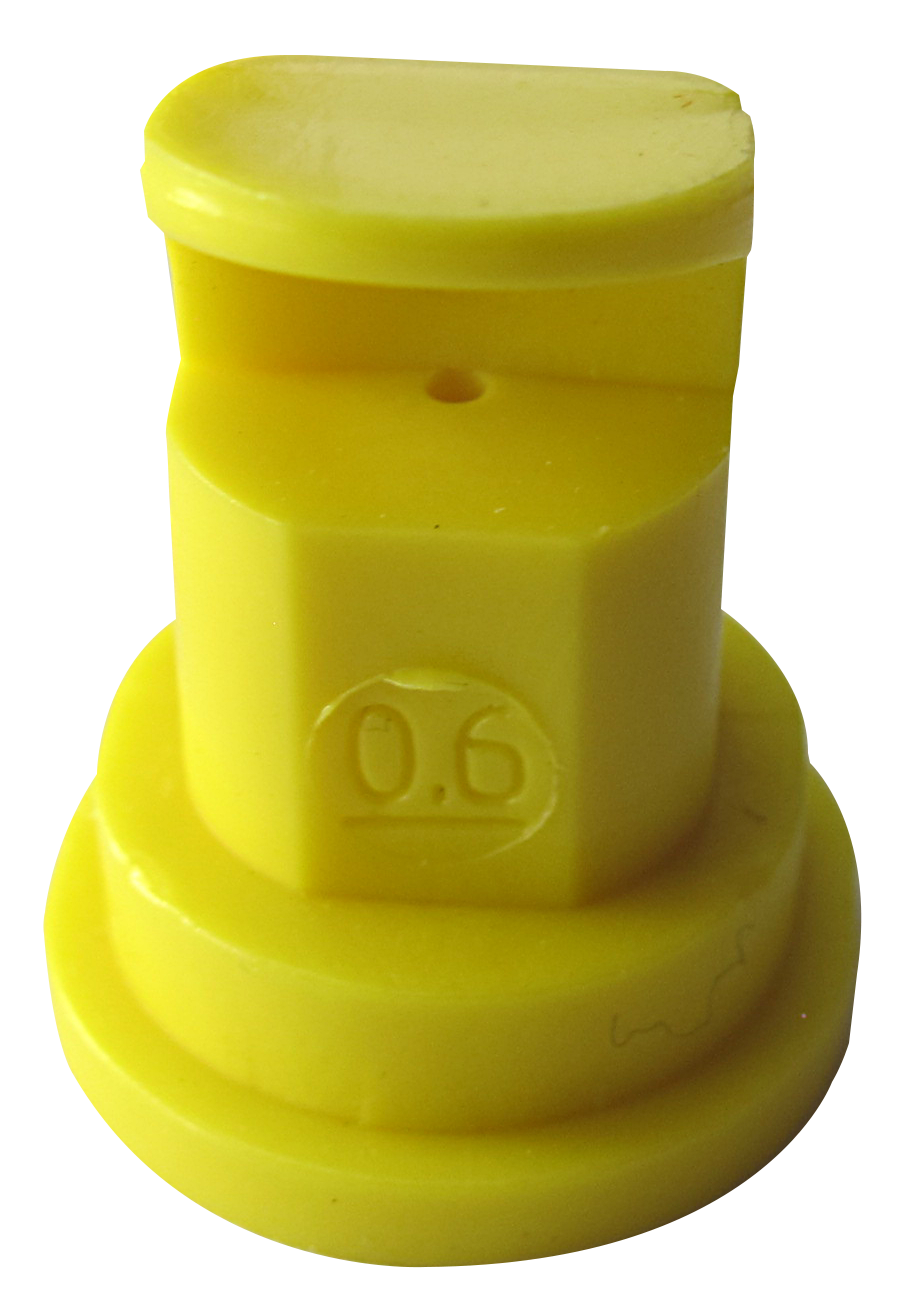

0.6 | Herbicides & Fertiliser | Knapsack | 53° | 1 | Coarse | 0.6 | 181 |
| 2 | Medium | 0.8 | 255 | |||||
| 3 | Medium | 1.0 | 313 | |||||
 |

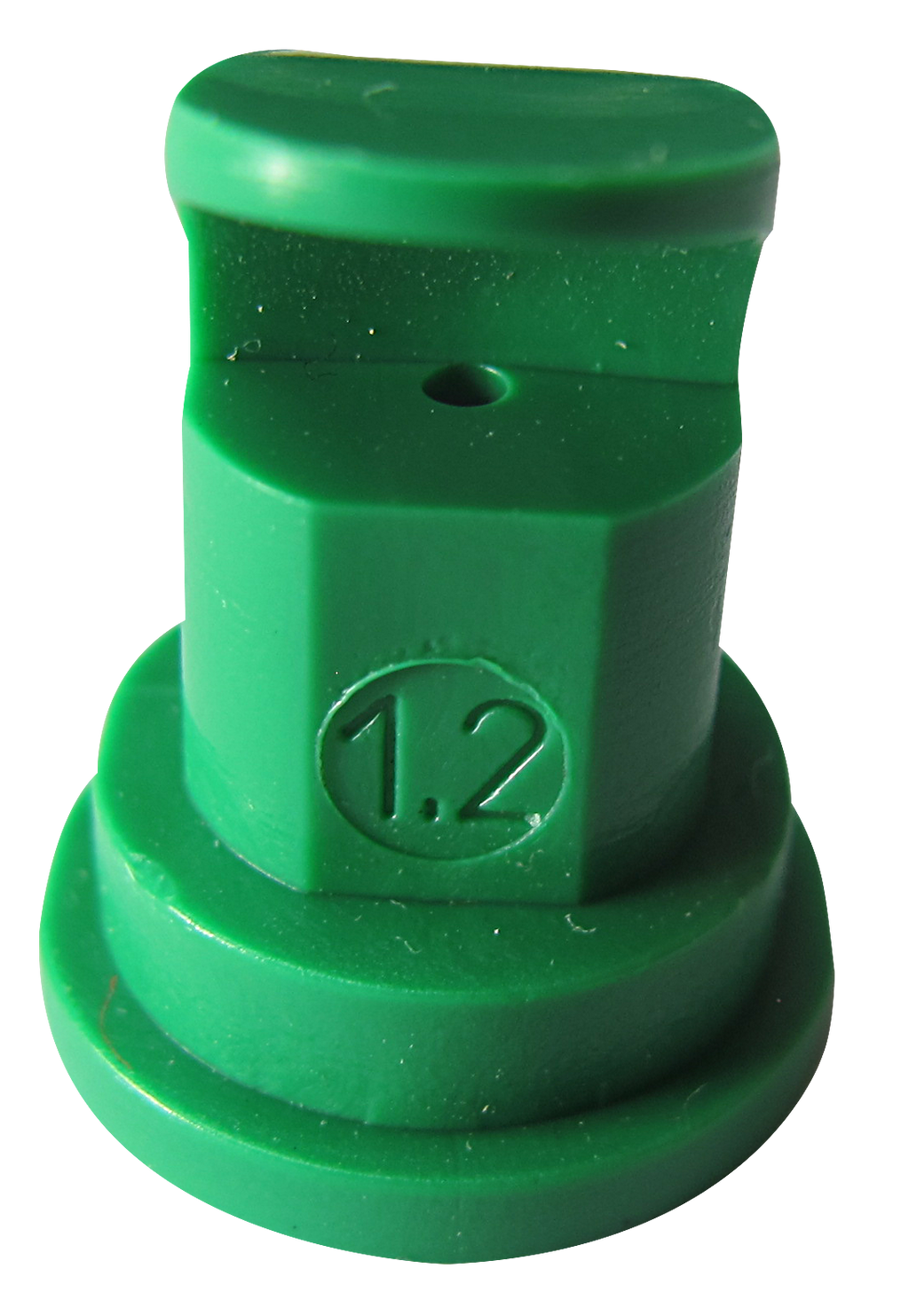

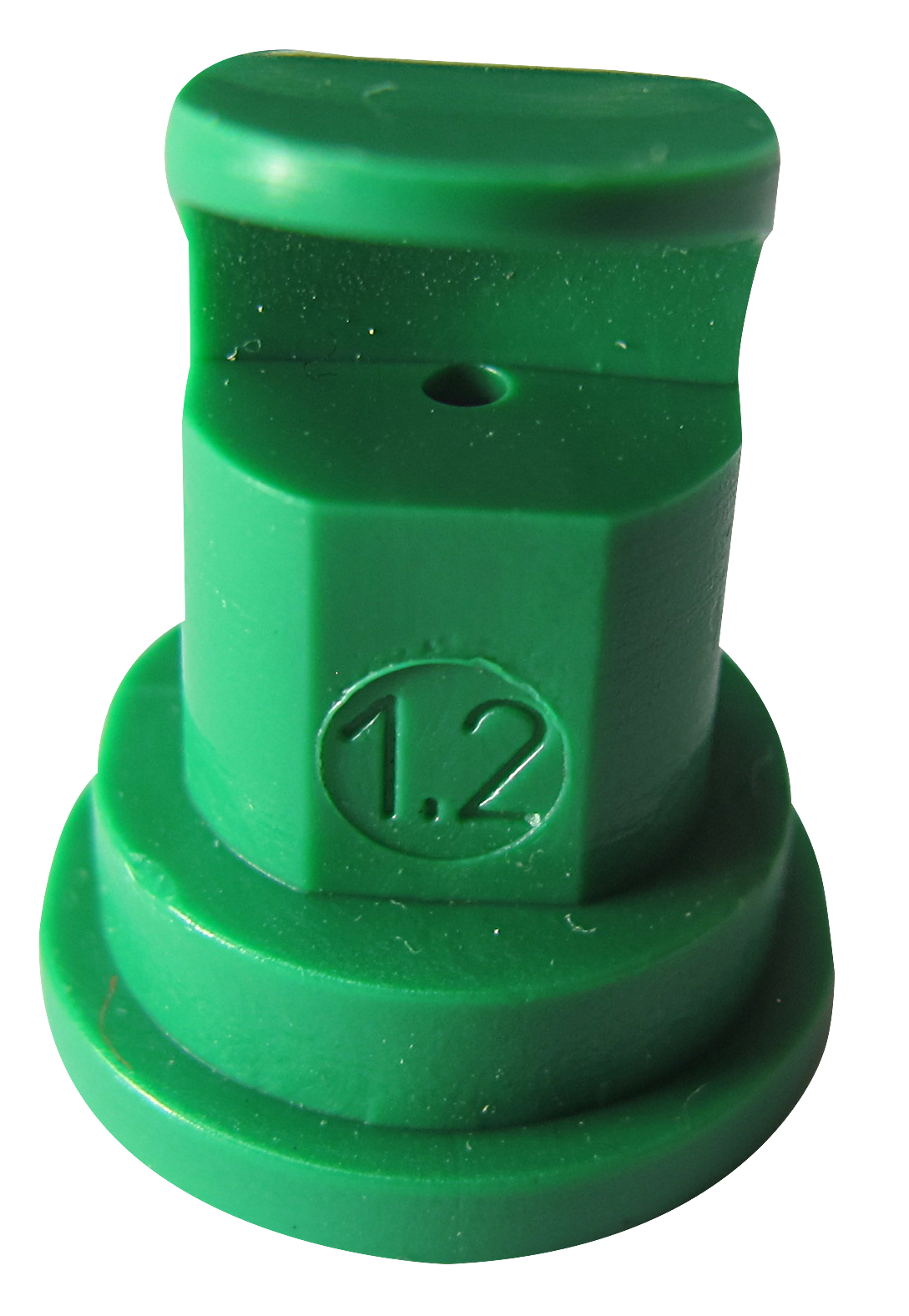

1.2 | Herbicides & Fertiliser | Knapsack | 90° | 1 | Coarse | 1.2 | 180 |
| 2 | Medium | 1.7 | 255 | |||||
| 3 | Medium | 2.1 | 312 | |||||
 |

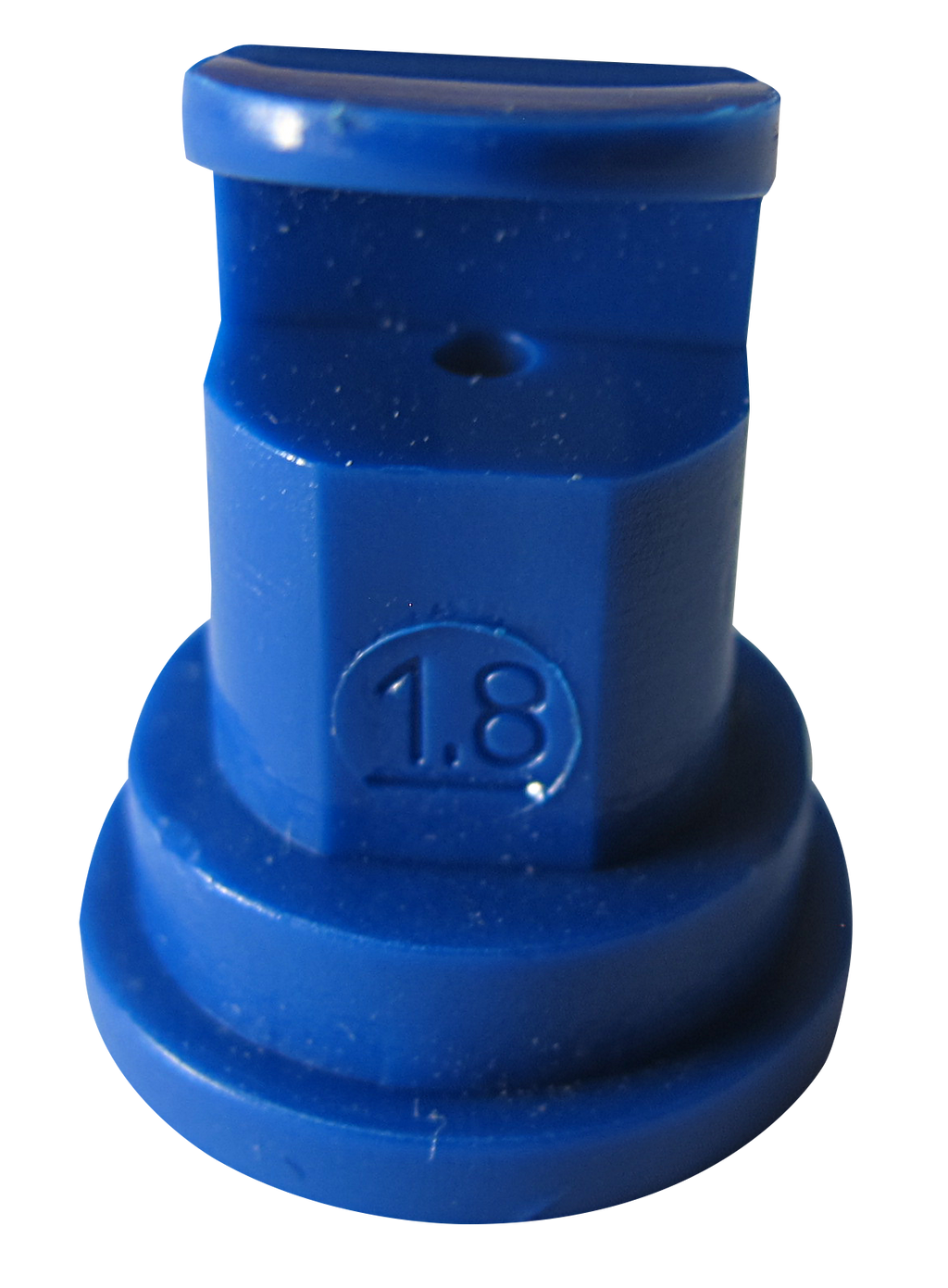

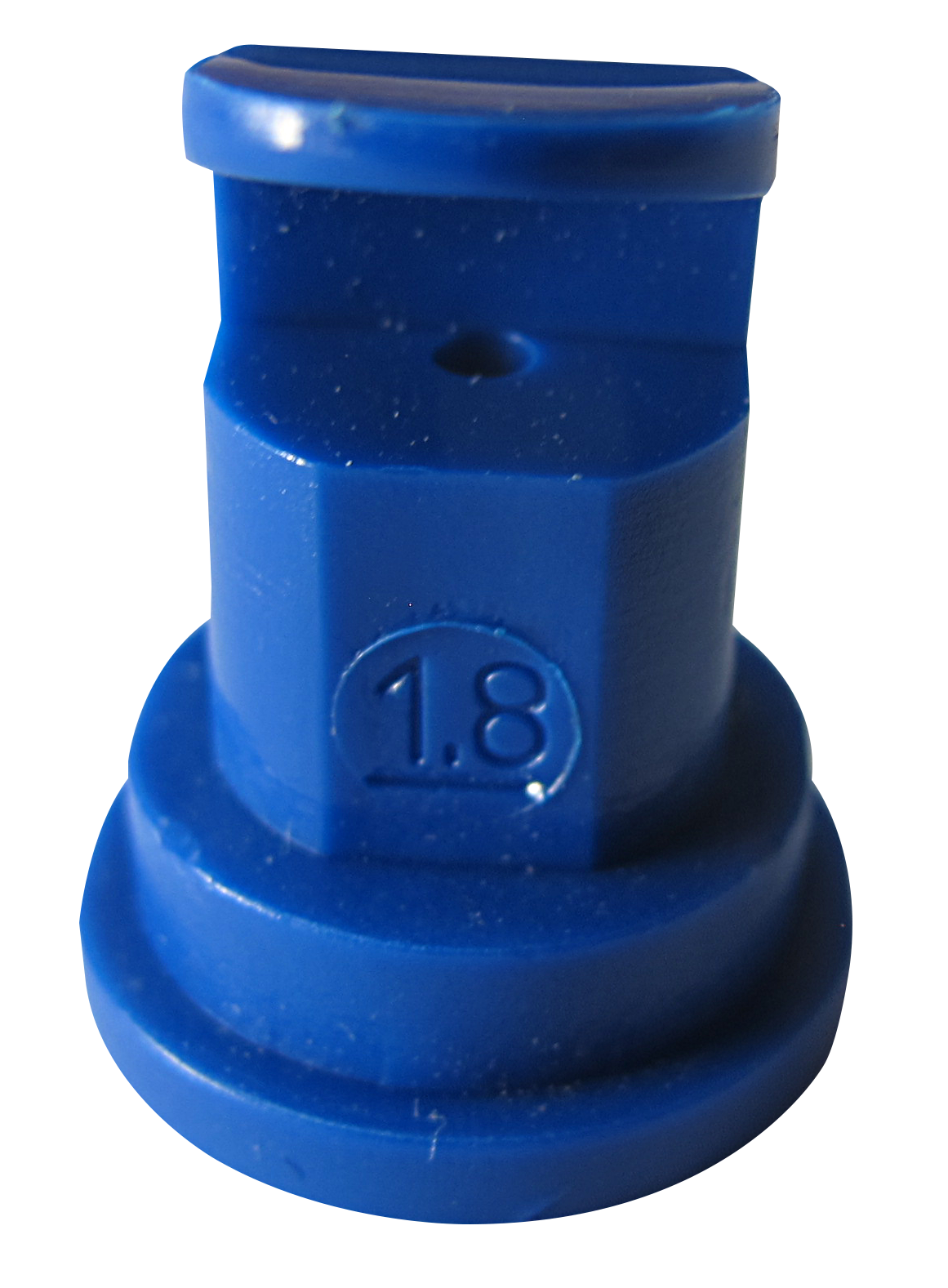

1.8 | Herbicides & Fertiliser | Knapsack | 113° | 1 | Coarse | 1.8 | 180 |
| 2 | Coarse | 2.5 | 255 | |||||
| 3 | Coarse | 3.1 | 312 | |||||
 |

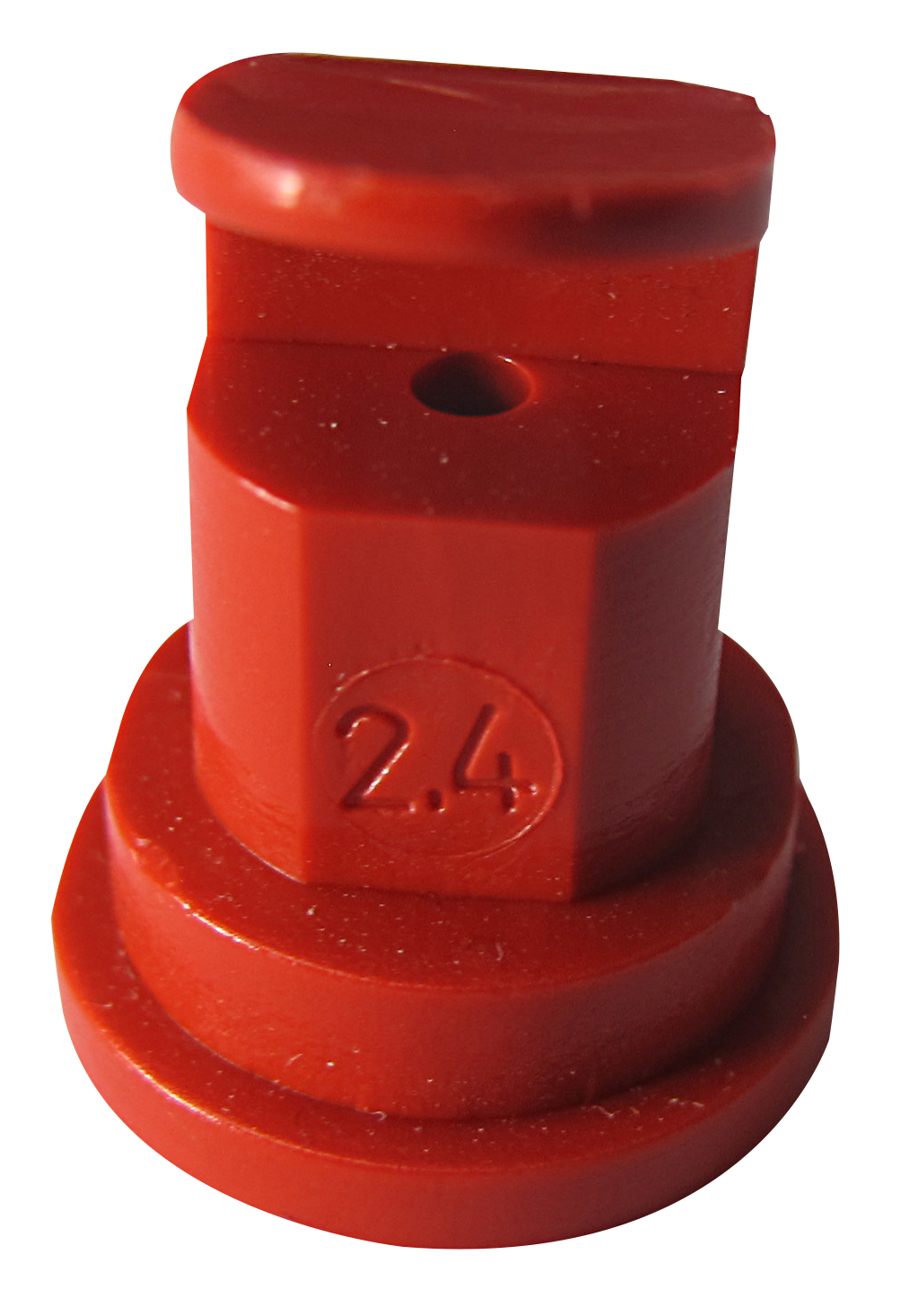

2.4 | Herbicides & Fertiliser | Knapsack | 127° | 1 | Coarse | 2.4 | 179 |
| 2 | Coarse | 3.4 | 254 | |||||
| 3 | Coarse | 4.2 | 312 | |||||
 |

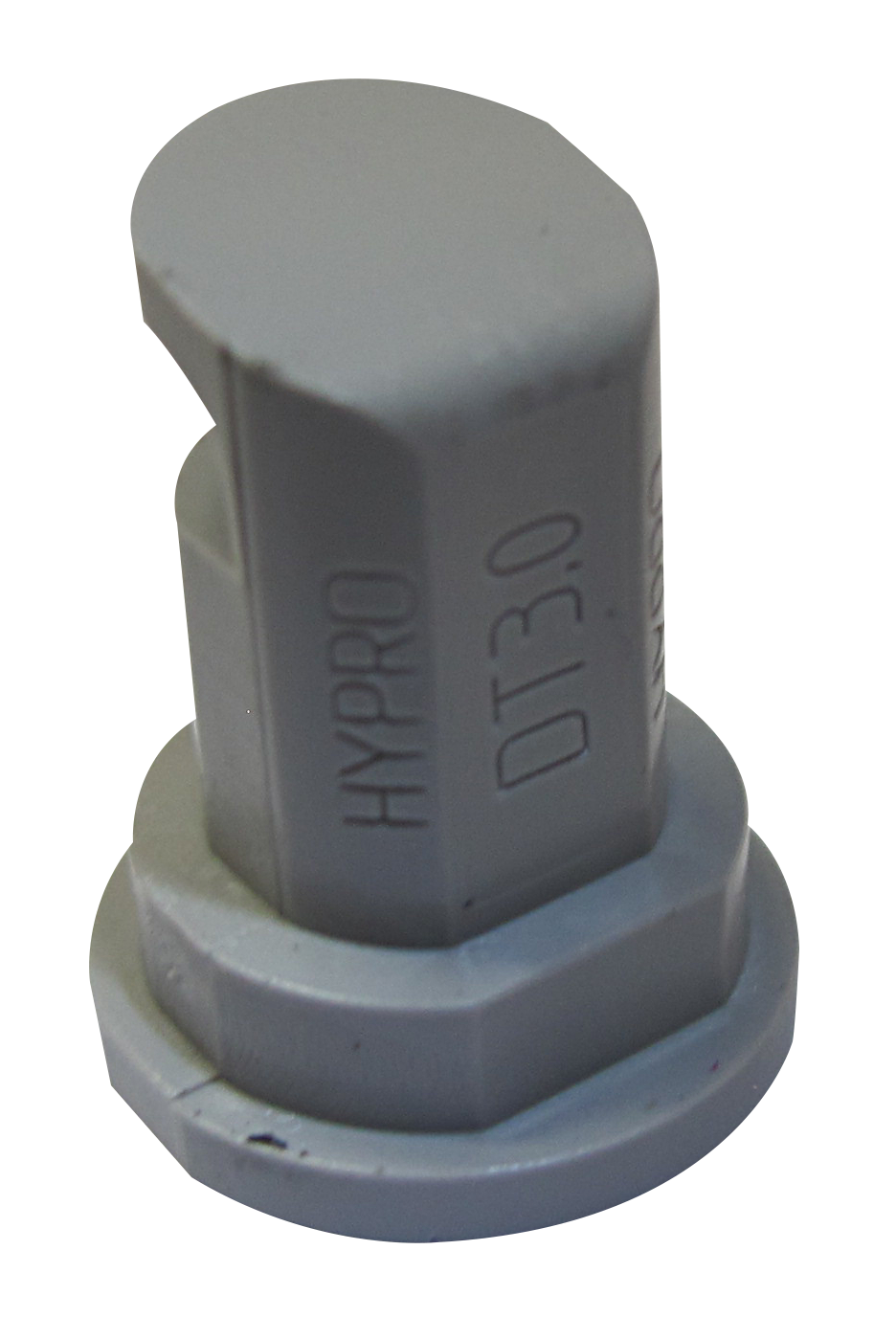

3.0 | Herbicides & Fertiliser | Boom Mounted | 110° | 1 | Coarse | 1.4 | 109 |
| 2 | Medium | 1.9 | 155 | |||||
| 3 | Medium | 2.4 | 190 | |||||
 |

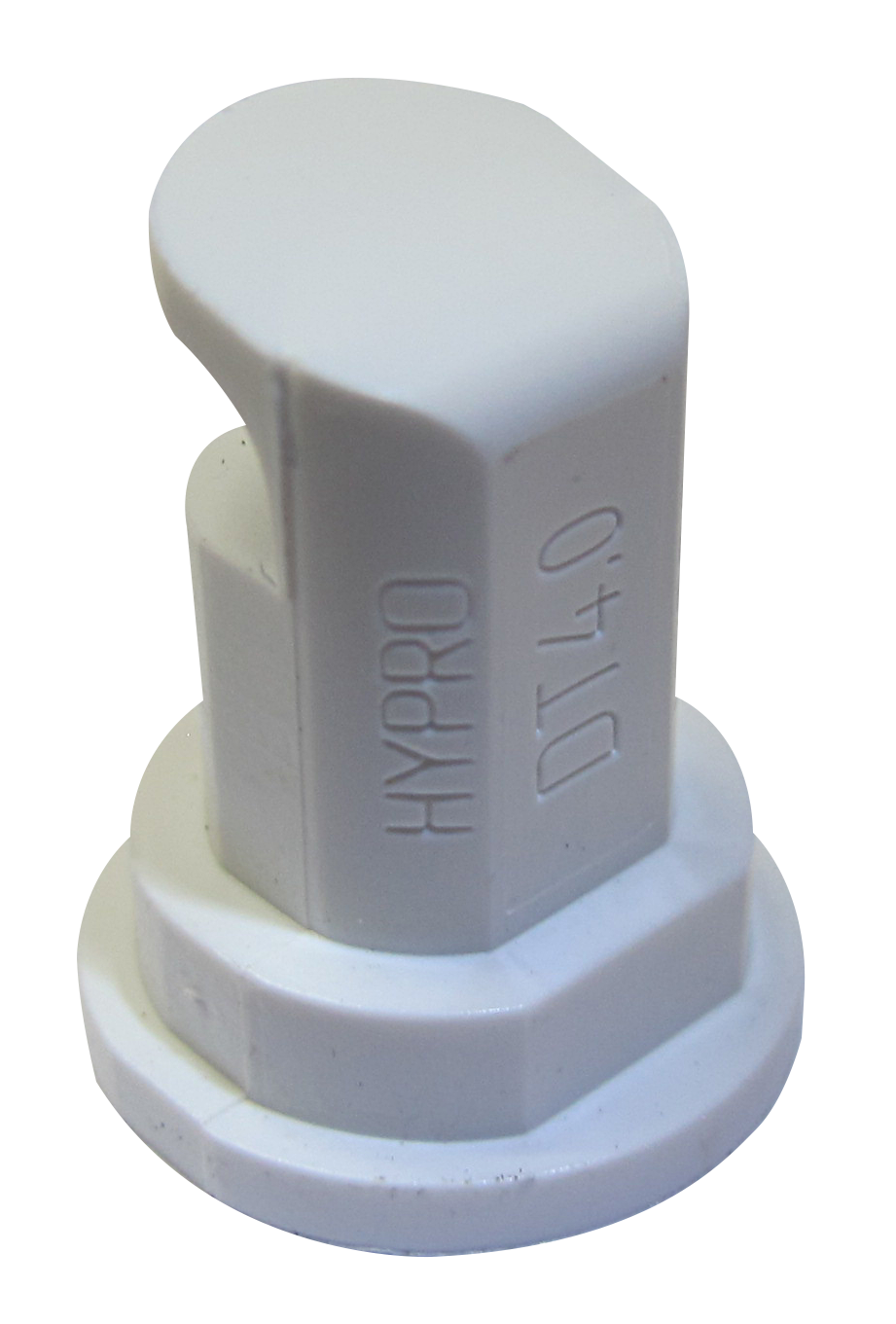

4.0 | Herbicides & Fertilisers | Boom Mounted | 110° | 1 | Medium | 1.8 | 146 |
| 2 | Medium | 2.6 | 206 | |||||
| 3 | Medium | 3.2 | 253 |
- Droplet size and flow rate stated at 1 bar pressure.
- Application rate for nozzle sizes stated at 4 km/h forwards speed for knapsack applications and 15 km/h for tractor applications.
For further information on the Flat Fan Nozzle ISO Brown 05F110, please contact a member of our technical sales team on 01902 440280
